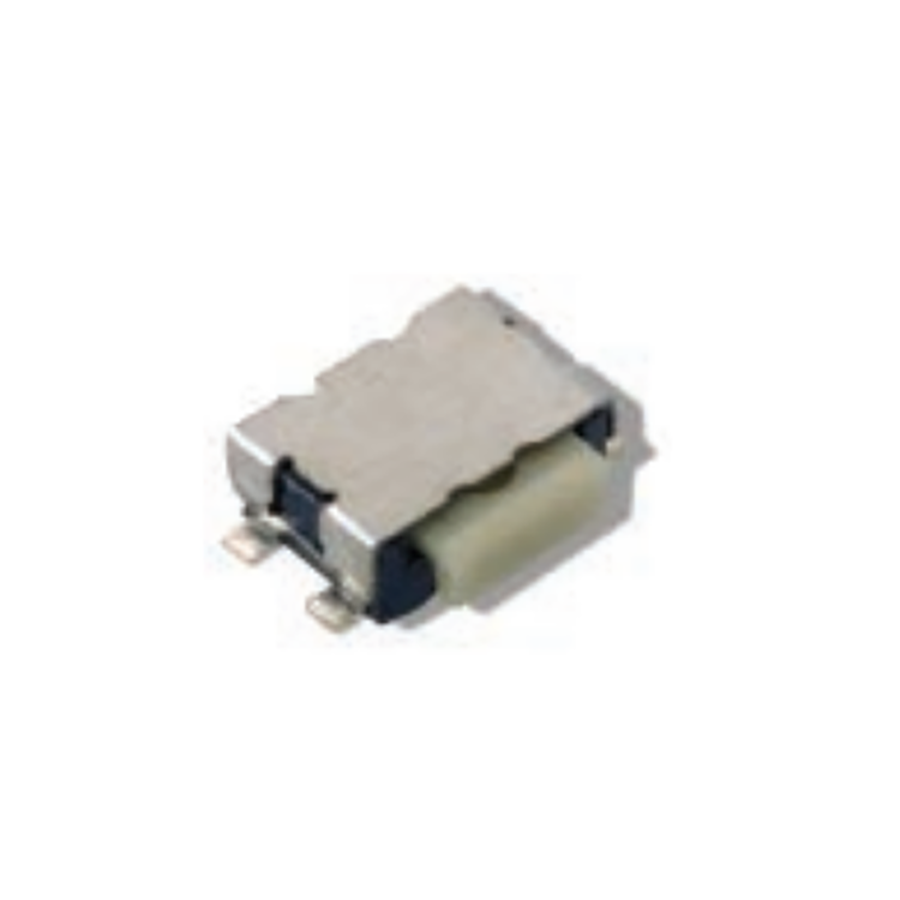

KMS233GLFG
Manufacturer:
C&K Components
Mfr.Part #:
KMS233GLFG
Datasheet:
Description:
Tactile Switches SMD/SMT SPST-NO Off-Mom 3 N
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 32 V |
| Length | 3.55 mm |
| Width | 3.5 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Power Rating | 200 mW |
| Circuit Type | SPST-NO |
| Packaging | Reel |
| Depth | 4.6 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Ratings | IP40 |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Gold |
| Current Rating | 10 mA |
| Max Current Rating | 10 mA |
| Max Voltage Rating (DC) | 32 V |
| Orientation | Right Angle |
| Color | White |
| Actuator Length | 750 µm |
| Throw Configuration | SPST |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Operating Force | 3 N |
| Switch Travel | 300 µm |
| Mechanical Life | 100 kcycles |
| Contact Current Rating | 10 mA |
| Actuator Type | Standard |
| Cap Color | White |
